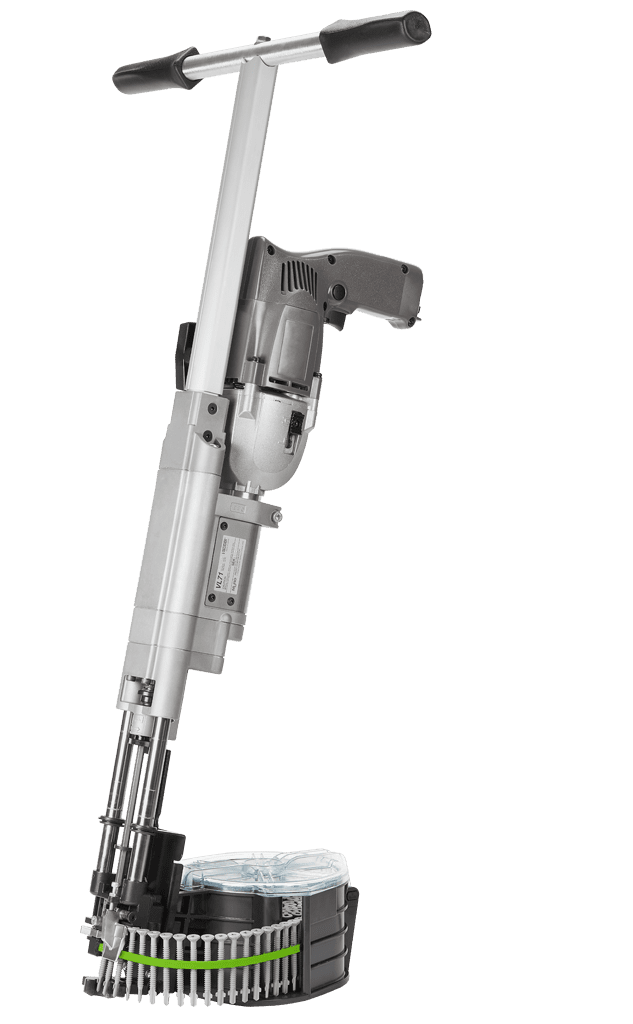

Heavy Duty Auto-Feed Driver

HDVL71

Drives #12 to 1/4″ self-drilling screws into steel up to 3/16″, no pre-drilling, one step, all day.

The Tool

Heavy Duty.
No Pre-Drill.
All Day.

What sets the HDVL71 apart from a standard heavy-duty screw gun is the attention to technical detail. Every feature is built to ensure that once you start a job, you don’t have to stop until it’s finished. Combines drilling and fastening into one step. No predrilling or countersinking required. Stand-up operation via height-adjustable T-handle keeps your crew upright and productive through the longest shifts.

Technical

Specs & Capacity

Drive Capacity

Screw Range#12 to 1/4″ diameter, 1″–4″ length
Screw TypeSelf-drilling / Self-tapping
Max Steel GaugeUp to 3/16″
Pre-Drill RequiredNo
Coil Capacity100 screws
Compatible ScrewsRSM series w/ reaming wings

Performance

Speed: HP2010N800–2,100 RPM
Speed: HDVL71-058460–1,210 RPM
Speed: HDVL71-083660–1,730 RPM
Speed: HDVL71-100800–2,100 RPM
OperationStand-up, adjustable handle
Depth ControlAdjustable, consistent seat
Power Source120V, 6.0A, electric or pneumatic
Driver Bits#2/#3 Square, #2 Phillips, Torx-20/25/27/30

Build

ConstructionIndustrial-grade, rugged
HandleHeight-adjustable T-handle
MURO Experience30+ years engineering
OriginMURO North America
ConstructionLight/simple, durable
OperationOne-step drill + drive
MURO Experience30+ years engineering

Ordering

Model No.HDVL71
PricingQuote on request
Distributor Line1-800-665-6876
HoursMon–Thu 7:30–4:30

Features

Built Different

01

No Pre-Drilling

Drives self-drilling screws directly into steel up to 3/16″. No pilot holes, no countersinking. One step operation from start to finish.

02

Stand-Up Handle

Height-adjustable T-handle keeps workers upright and ergonomic. Less fatigue, faster pace on high-volume production runs.

03

High-Capacity Coil

Auto-feed coil eliminates dropped screws and manual loading. Reload fast and keep the line moving without stopping the job.

04

3 Speed Options

1,200 / 1,700 / 2,200 RPM models. Match the right speed to your substrate: light steel, heavy gauge, or production-line volume.

05

Adjustable Depth

Set depth once, drive hundreds. Every fastener seats at the same depth. Production-line consistency without constant adjustment.

06

Rugged Construction

Industrial-grade build for demanding job sites. Three decades of MURO engineering refinement behind every component.

In Action

See the HDVL71
Running.

Applications

Where It Works

Metal to Metal

Sheet metal, structural steel, heavy-gauge framing. No pre-drill into steel up to 3/16″.

Mezzanine Flooring

High-volume elevated decking systems. Stand-up handle keeps crews productive all day.

RV & Trailer Flooring

Wood-to-metal substrate fastening in trailer and RV OEM production lines.

Steel Framing

Self-drilling into light and medium steel gauge with consistent depth across long runs.

Industrial Construction

Where a standard screw gun can’t keep up. Built for the toughest production environments.

OEM Production Lines

Auto-feed reliability for high-volume manufacturing. Reduce labor cost per fastener significantly.
